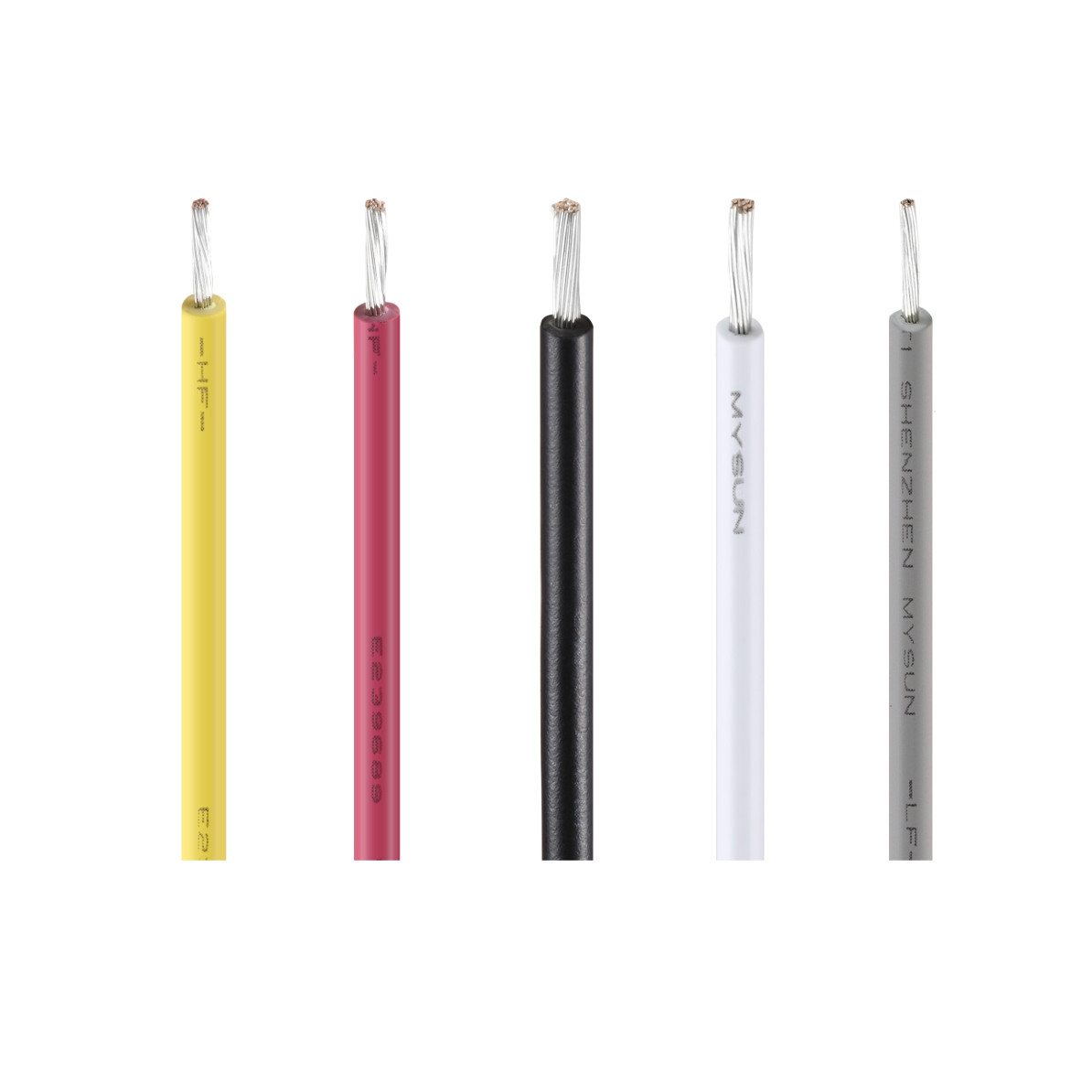

UL3173 specifciation:
1. Rated voltage:600V
2. Rated temperature:125C
3. Standard:UL758
4. Insulation:XLPE
5. Conductor:Tinned copper
6. Appliacation:Widely used in home appliance,new energy automobile,lighting,heater,motor&generator,UAV,robot,industrial power etc.
UL3173 demesion:
| Conductor | Insulation | Max.Cond Resistance | Unit length |
Size
(AWG) | Construction
(No./mm) | Diameter
(mm) | Nominal Thickness
(mm) | Diameter
(mm) | (Ω/KM) | (M)(Ft) |
| 26 | 7/0.16 | 0.48 | 0.78 | 2.04 | 143 | 305/1000 |
| 24 | 11/0.16 | 0.60 | 2.16 | 89.3 |
| 22 | 17/0.16 | 0.76 | 2.32 | 56.4 |
| 20 | 21/0.18 | 0.94 | 2.49 | 35.2 |
| 18 | 16/0.254 | 1.18 | 2.73 | 22.2 |
| 16 | 26/0.254 | 1.50 | 3.06 | 14 |
| 14 | 41/0.254 | 1.89 | 3.45 | 8.78 |
| 12 | 65/0.254 | 2.37 | 3.93 | 5.53 |
| 10 | 105/0.254 | 3.02 | 4.58 | 3.476 |
| 9 | 133/0.254 | 3.36 | 4.92 | 2.73 |
Advanges of UL3173 :
- aging resistance
- good soft bending performance
- can be wound for use
- long service life
Service:
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
FQA
1. Are you a manufacturer?

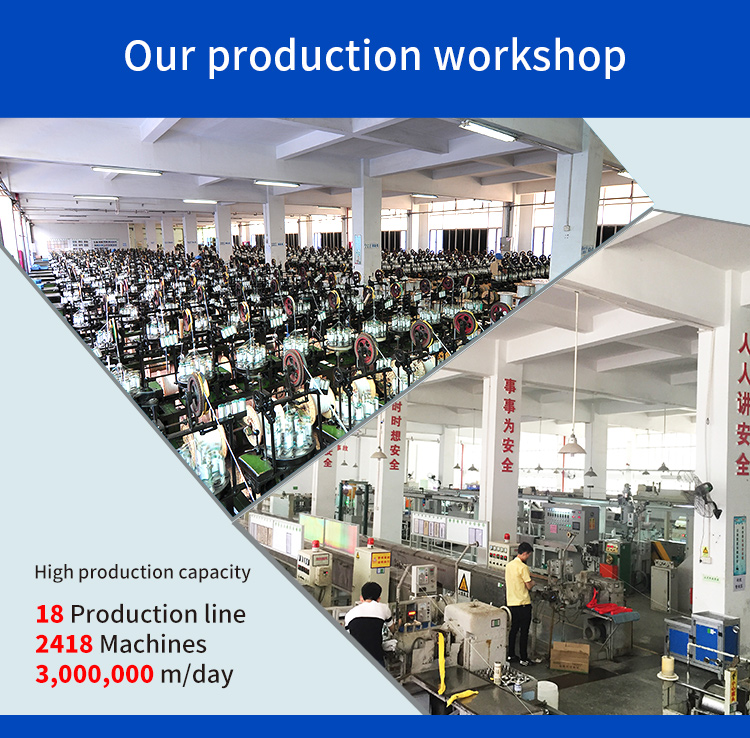

A:Yes,Our factory is located in Dongguan City more than 20,000 sqmm;
and have 20 years leading experience in manufacturing wires.
2. What are your main products?
A:Our main products are SR wire,FEP wires ,xlpe pvc wires and Mica wires Wire Harnesses.
3.What certification did your products pass?
A: We attained UL; cUL, CSA;VDE; CCC;IATF 16949;ISO 9001;ISO 14001 ROHS,REACH certifications
