20AWG UL3173 XLPE Wires And Cable VDE Tinned Copper

Name: 20AWG UL3173 XLPE Wires And Cable VDE Tinned Copper
Brand: Mysun
Price: 0.06 USD

Brand Name : Mysun

Model Number : UL3173

Certification : ROHS/CCC/VDE/CCC/ISO9001:2008

Place of Origin : Guangdong，China

MOQ : 3050meters

Price : 0.06~0.2681USD per M

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500000 Meters per Day

Delivery Time : 7-15 working day

Packaging Details : Standard packge: cardboard box Accept custom-made.

Conductor Type : Stranded

Color : Black

Usage : Widely used in home appliance ,lighting ,heater,motor & generator,UAU,robot,industrial power etc

Rated Voltage : 600v

Rated Temperature : 125C

Size : 20AWG

Conductor : Tinned Copper

Standard : UL758

Insulation : XLPE

Type : insulated

Max.Cond Resistance : 36.7Ω/KM

Construction : 21/0.18

Contact Now

UL standard UL3173 XLPE wires and cable 20AWG in black color

UL 3321 Specifications:

Nominal voltage:600V

Temperature range:125℃

Standard: UL3173

Insulation: xlpe

Conductor: Tinner copper

Product features:

insulated wire has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,

high voltage resistance, aging resistance, long service life and soft and easy to install.

Product Parameter

Applications:

* Widely used in lighting, household appliances, , lamps.
* electric appliances, instrumentation, motor wiring and electronics.
* gas appliances and other high-temperature environment.

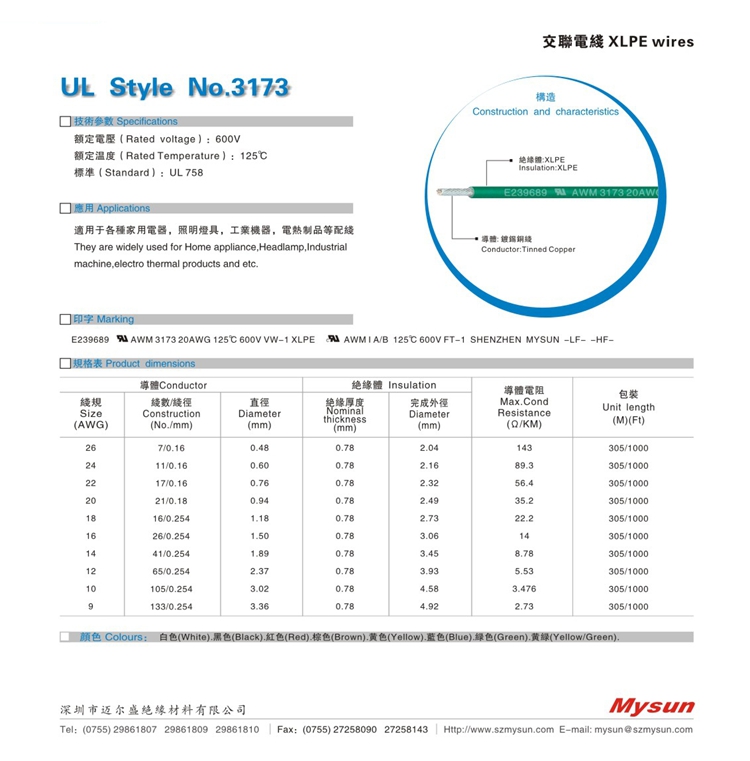

Conductor			Insulation		Max.Cond Resistance	Unit length
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	(Ω/KM)	(M)(Ft)
26	7/0.16	0.48	0.78	2.04	143	305/1000
24	11/0.16	0.60		2.16	89.3
22	17/0.16	0.76		2.32	56.4
20	21/0.18	0.94		2.49	35.2
18	16/0.254	1.18		2.73	22.2
16	26/0.254	1.50		3.06	14
14	41/0.254	1.89		3.45	8.78
12	65/0.254	2.37		3.93	5.53
10	105/0.254	3.02		4.58	3.476
9	133/0.254	3.36		4.92	2.73

20AWG UL3173 XLPE Wires And Cable VDE Tinned Copper

Our Product

20AWG UL3173 XLPE Wires And Cable VDE Tinned Copper

Product Description

20AWG UL3173 XLPE Wires And Cable VDE Tinned Copper

Package & Delivery

Delivery:
Sample order: 1-3 working days
Big order: 5-10 working day
Customized order: 10-15 working days

20AWG UL3173 XLPE Wires And Cable VDE Tinned Copper

Company Introduction

20AWG UL3173 XLPE Wires And Cable VDE Tinned Copper
