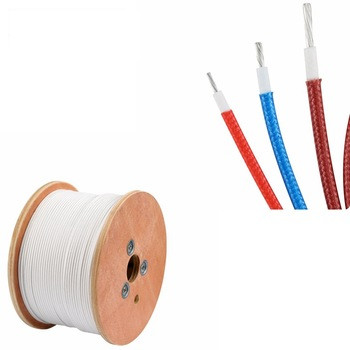

Fiberglass Braided 18AWG 300V Silicone rubber Insulated Wire UL3122

Brand Name : Mysun

Model Number : UL3122

Certification : UL

Place of Origin : China

MOQ : 1000M

Price : USD0.1-2/m

Payment Terms : T/T

Supply Ability : 1 million per day

Delivery Time : 5-10 workdays

Packaging Details : 305m/roll,610m/roll

Conductor type : Stranded

Insulation material : Silicone Rubber extruded

Conductor material : Tinned Copper

Type : Insulated

Color : Red,Black,blue,yellow,green

Rated voltage : 300V

Cross section : 0.30mm2awg

Core : Single

Packing : 100m/Roll,wooden drum,1000ft /roll,305m per roll

Temp reistance : 200 Degree

Contact Now

UL3122 silicone rubber wire

  • Flexibility: silicone rubber insulation with fiberglass braided sleeving
  • Maximum conductor resistance: 24.4 ohm/km
  • Resistant to oil, hot and cold, flexing
  • Rated temperature: -50°C to +200°C
  • Rated voltage: 300 V
  • Insulation potential strength: 2000 VAC/min
  • Passes the FT2 flame test
  • Available in 16AWG, 18AWG, 20 AWG, and 22 AWG

ConductorInsulationMax Cond resistance
(ohms/m)		Unit length
(m)(F)
3KV6KV10KV20KV30KV
SizeConstructionDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameterNominal ThicknessDiameter
(AWG)(NO./mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)(mm)
287x0.120.370.501.370.701.771.002.371.302.971.703.77239610/2000
267x0.150.490.501.490.701.891.002.491.303.091.703.89150610/2000
2414x0.140.600.501.600.702.001.002.601.303.201.704.0094.2610/2000
2222x0.140.760.501.760.702.141.002.761.303.361.704.1659.4305/1000
2032x0.140.910.501.910.702.311.002.911.303.501.704.3136.7305/1000
1852x0.141.170.502.170.702.571.003.171.303.771.704.5723.2305/1000
1652x0.181.500.502.500.702.901.003.501.304.101.704.9014.6305/1000
